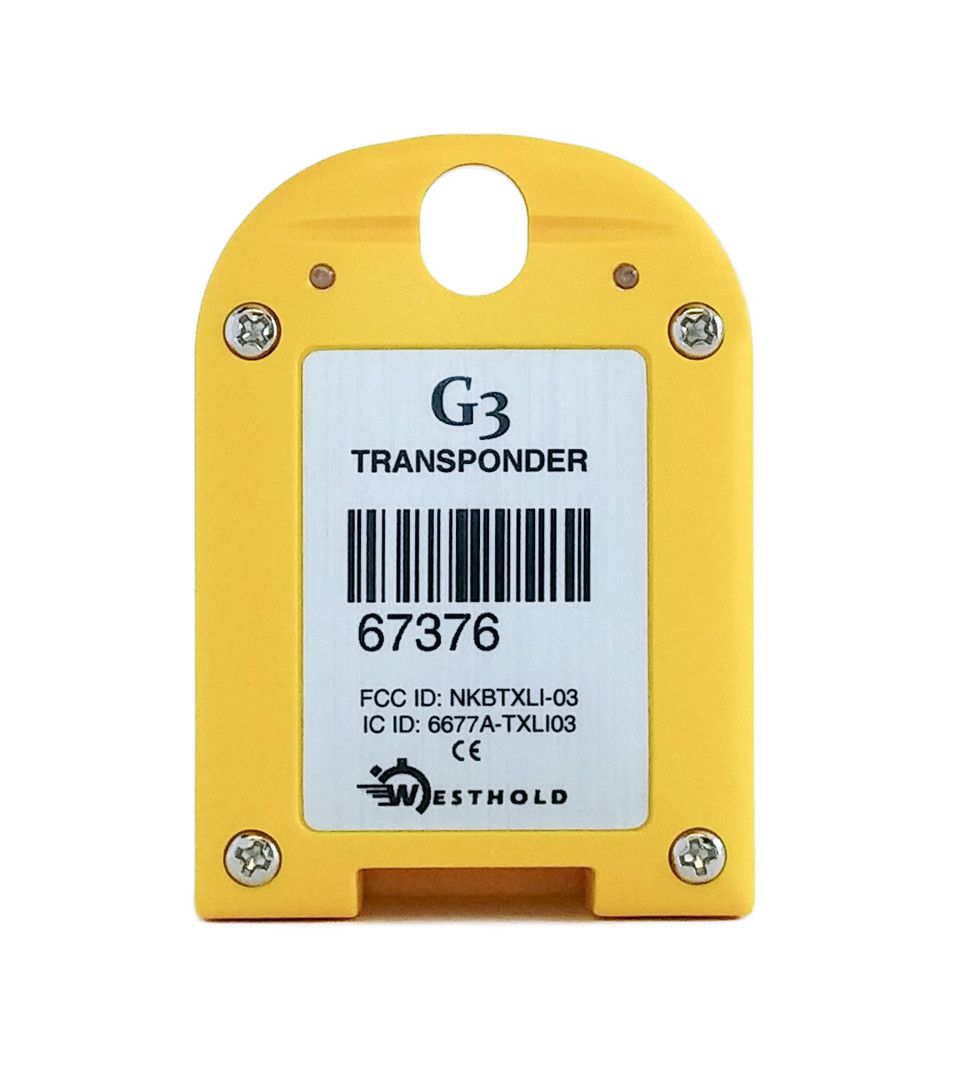

The latest generation rechargeable transponder optimally designed for car racing of all types. The G3 Car Transponder transmits a signal 1000 times/second. That signal is detected and processed by the IDEC decoder to identify the driver and the exact moment the driver crosses the start/finish line with 1/10,000th of a second precision. Charge lasts up to 5 days. Green light at top flashes the number of days remaining. Fast recharge (max 3 hours, typically 1 hour). MOUNTED VERTICALLY.

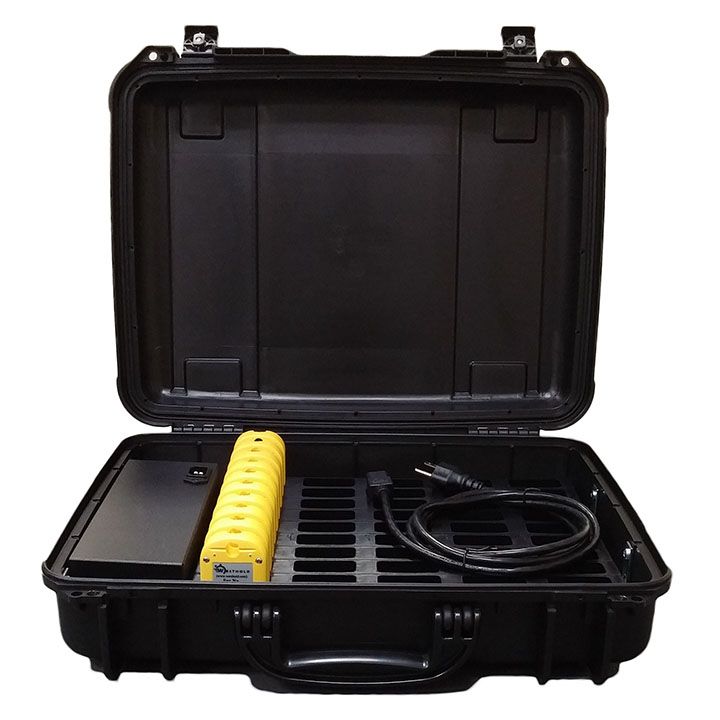

Capable of charging 50 transponders, the bulk charger is also a convenient carrying case made from a tough Mil-Spec, IP-67 case. Typical charge time is ~ 3 hour when full of transponders. LED lights on the transponder indicate full charge while in the charging case. When removed from the case the transponder green LED indicates approximate number of days of battery life left (up to 7 days). A red LED indicates when the transponder charge has less than 1 day remaining. SUPPORTS NEW GENERATION TRANSPONDERS ONLY.

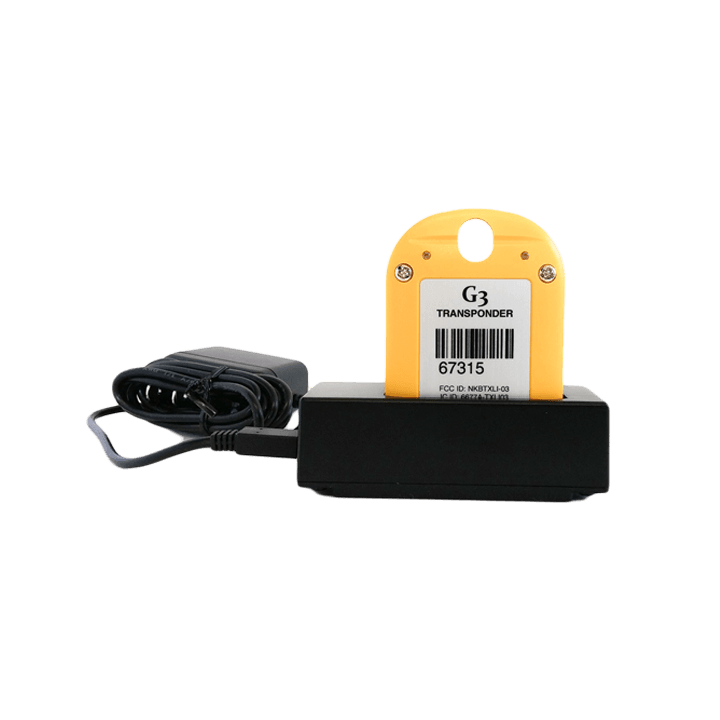

Transponders are quickly charged with the convenient charging cradle. Supports new generation rechargeable transponders. Max charge time is ~ 3 hours. Typical charge time is ~ 1 hour. LED lights on the transponder indicate full charge while in the charging cradle. When removed from the cradle the transponder green LED indicates approximate number of days of battery life left (up to 7 days). A red LED indicates when the transponder charge has less than 1 day remaining.

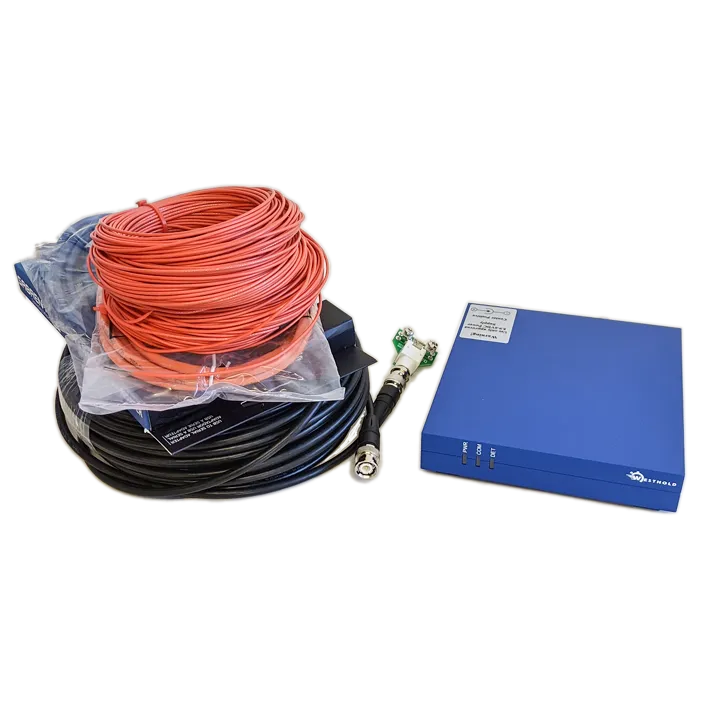

When a transponder crosses the detection loop, the IDEC captures signals from the transponders and processes the raw data to determine the exact crossing time of each vehicle. It then sends this information to the computer over a serial or Ethernet link for final analysis and storage with Race Manager Software. Data can then be sent from the computer to other devices such as scoreboards, printers, wireless hand-held lap time viewers, and other third party devices. The IDEC can be used standalone or in a network of multiple timing points. INCLUDES BALUN, LOOP ANTENNA, COAX, AND NETWORK CABLES. Software is free online.

The IDEC Decoder supports multiple protocols and is compatible with:

Apex Timing, AxWare, Chronolec, ClubSpeed, LiveTime, MoScore, NatSoft, RaceTrackInnovations, Vola Racing MSports, Vola Racing Circuit Pro and MANY MORE
